Seepex 工業螺桿泵與交流變頻驅動，2.5 - 226GPH

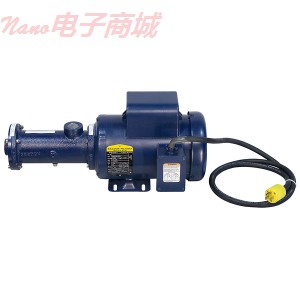

Industrial progressing cavity pump with an AC VFD drive, 2.5 - 226 GPH

優良的耐化學腐蝕性，無脈流，低剪切

溫和低剪切流體輸送能抽小顆粒而不損壞產品

泵可處理各種聚合物和化學品，是制藥和水處理應用的理想選擇

衛生批準3A衛生應用型，而且可以清理到位

A

泵頭可以安裝在一個NEMA 56C底架電動機。泵壓頭，也可以直接連接或AC或DC電機，汽油發動機（最小2馬力），或空氣馬達驅動皮帶。

B

馬達乙泵電機部分是緊密耦合的交流電機有一個整體式的VFD控制器。VFD控制器設有“手自動關閉”開關，提供從30到600轉的速度。

C

泵230/460 VAC的輸入電源配備了一個0.5馬力的電動機。這種配置具有的機械變速驅動器，調整從0到1000轉。

選項分為工業和衛生類別。其他彈性體也可供,附加信息請聯系應用程序?qū)＜?/span>

Excellent chemical resistance, pulseless flow, and low shear

Gentle low-shear fluid transfer capable of pumping small particles without damaging product

Pumps can handle a variety of polymers and chemicals—ideal for pharmaceutical and water treatment applications

Sanitary models approved for 3A sanitary applications and can be cleaned in place

A

Pump heads can be mounted on a NEMA 56C frame motor. Pump heads can also be directly connnected or belt dirven by an AC or DC motor, gasoline engine (min. 2 hp), or air motor.

B

Pumps are close-coupled to an AC motor with an integral VFD controller. The VFD controller features a “hands-off-auto” switch, providing speeds from 30 to 600 rpm.

C

Pumps feature a ?-hp motor with 230/460 VAC input power. This configuration has a mechanical variable-speed drive that adjusts from 0 to 1000 rpm.

Options are broken up into an industrial and a sanitary categories. Other elastomers are avialble, please contact an Applications Specialts for additional information.
