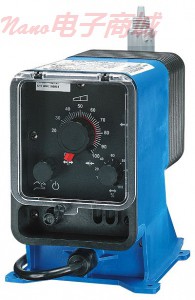

Pulsafeede 七天計時器泵，230 VAC，12 GPD

提供精確可靠的計量性能制導雙止回閥座位和優良的吸和吸程

PVC及PTFE構造與外部控制

非常適于水處理和化學飼料應用

手動控制泵特性可調風率和長度，可靠的計時電路，保護電路防止電壓和電流紊亂。無泄漏放氣閥安全。易起動。泵是防水，可安裝在室外。包括：注塑/背壓閥組件，底閥/過濾器組件，三功能閥，4英尺透明PVC管材，和8英尺剛性的聚乙烯排放管。所有115 VAC泵包括一個6英尺的美國插頭電源線，230 VAC泵包括一個6英尺電源線（不包括插頭）。

服務包（單獨出售，并在表中列出）包括閥芯O型圈，頭，隔膜，二次O型圈，頭螺釘，和墊圈.7天定時泵定時應用簡單，性價比高的計量系統。泵提供8/8，每周最大可調關閉程序。這些泵需要化工產品定時的時間表，常用的殺生物劑飼料的應用。飼料周期由可編程定時器啟動和控制。

產品規格

產品類型              隔膜式計量泵

防潮部件              聚氯乙烯，聚四氟乙烯，陶瓷

最大壓力              100磅

最大粘度（CP）        1000

最大流量（毫升/分鐘） 32

尺寸                  10“寬x 10”高x 9 - ?“深

泵的類型              膈

電源（VAC）           230

功率（赫茲）          50/60

功率（安培）          0.5

重復性                ±3％

每分鐘行程（最大）    125

端口大小              3/8“OD

占空比                連續

吸程（濕）            4英尺

品牌                  PULSAFEEDER

型號                  LC13BB VTC1

生產編號              LC13BB VTC1

Seven-day timer pump, 12 GPD, 230 VAC

Reliable metering performance—guided dual check valves provide precise seating and excellent priming and suction lift

PVC and PTFE construction with external control

Ideal for water treatment and chemical feed applications

Manual control pumps feature adjustable stroke rate and length, reliable timing circuits, and circuit protection from voltage and current upsets. Leak-free bleed valves provide safe and easy priming. Pumps are water resistant and can be installed outdoors.

What's Included:

Injection/back pressure valve assembly, foot valve/strainer assembly, three-function valve, 4-ft clear PVC tubing, and 8-ft rigid polyethylene discharge tubing. All 115 VAC pumps include a 6-ft power cord with US plug; 230 VAC pumps include a 6-ft power cord (plug not included).

Service kits (sold separately and listed in each table) include valve cartridges with O-rings, head, diaphragm, secondary O-ring, head screws, and washers.Seven-day timer pumps provide a simple and cost effective metering system for timed applications. Pumps offer eight on/eight off programs per week for maximum adjustability. These pumps feed chemical products on a timed schedule and are commonly used in biocide feed applications. Feed cycle is initiated and controlled by programmable timer.

Specifications
Product Type	Diaphragm Metering Pumps
Wetted parts	PVC, PTFE, ceramic
Max pressure	100 psi
Max viscosity (cp)	1000
Max flow rate (mL/min)	32
Dimensions	5"W x 10"H x 9-?"D
Pump type	Diaphragm
Power (VAC)	230
Power (Hz)	50/60
Power (Amps)	0.5
Repeatability	±3%
Strokes per minute (Max)	125
Port size	3/8" OD
Duty cycle	continuous
Suction lift (wet)	4 ft
Brand	Pulsafeeder
Model	LC13BB-VTC1
Manufacturer number	LC13BB-VTC1
