Thermo Scientific 00 mm寬x 350毫米高度光圈 金屬探測器

Ensure food safety by detecting all types of metal contaminants

Proprietary multicoil design provides excellent sensitivity to all metals

Fully tested to meet IP69k/NEMA/ATEX requirements

Application flexibility with dual frequency and gain operation

Remove product effects with traditional phasing or unique Intellitrack XR (IXR)

Quickly set up products with simple autolearn function

Multilingual help text

Multi-level password protection to ensure correct operation in production

Fe, non-Fe, and 316 stainless steel test cards included

Rated for IP69k washdown and dust environments

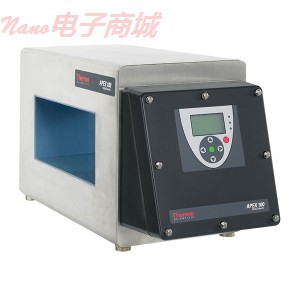

The APEX 100 metal detector provides basic, cost-effective protection from the most common metal contaminants found in food production today. This metal detector is instrumental in your HACCP policy compliance and is designed to perform for years with minimal maintenance.

To deliver greater accuracy in detecting contaminants in wet and salty products, the APEX 100 features the innovative Intellitrack XR (IXR) technology. This technology learns and cancels the sinusoidal X (reactive) and R (resistive) product signals, and only detects the metal contaminants. To maintain high accuracy over time, the IXR tracks product changes and adjusts the product signals to eliminate the risk of contaminants going undetected.

Installation and setup is quick and easy, and no special training is required. The detectors come with everything you need, including electrical fittings as well as clear wiring and mechanical mounting instructions. An easy-to-use icon-driven interface features a step-by-step quick-reference guide, multilingual help text, and autocalibration.

Optimize performance by matching the metal detector exactly to your conveyor width and product height with the numerous aperture size configurations available. Easily customize your metal detector with additional accessories such as MODBUS communications modules, field compression flanges, remote control mounting kit, alarm/fault warning lights and horn, and photo eyes for product inspection trigger.

Note: To ensure proper aperture clearance, add at least 1.9 in (50 mm), to the width and height of the product. The control panel is always mounted in the center of the front of the metal detector case unless remote mounting is ordered.
What's Included:
metal detector head, mounting hardware, watertight electrical fittings, test cards, and documentation on CD (users' guides and installation instructions, quick reference guide, and PC software simulator)

通過檢測所有類型的金屬污染物，確保食品安全

專有multicoil設計提供優異的靈敏度對所有金屬

全面測試，以滿足IP69k/NEMA/ATEX要求

雙頻率和增益操作的應用靈活性

刪除產品效果與傳統的相位或獨特的Intellitrack XR（IXR）

迅速成立了產品具有簡單的自學習功能

多語言幫助文本

多級密碼保護，以確保正確操作生產

包括鐵，非鐵，和316不銹鋼測試卡

額定IP69K沖洗和粉塵的環境中的

APEX 100金屬探測器提供基本的，具有成本效益的保護，從今天發現在食品生產中最常見的金屬污染物。器樂在HACCP的政策符合這種金屬探測器是用最少的維護是設計用來執行多年。 為了提供更精確的檢測污染物在潮濕及鹽份高的產品，APEX 100功能創新Intellitrack XR（IXR）技術。這種技術的學習和取消正弦X（反應性）和R（電阻）乘積信號，并僅檢測的金屬污染物。隨著時間的推移，為了保持精度高IXR跟蹤產品的變化，調整產品信號消除污染物的風險去未被發現。安裝和安裝快速而容易，不需要特殊培訓。該探測器配有你需要的一切，包括電器配件以及清晰的布線和機械安裝說明。一個易于使用的圖標驅動的界面設有一個一步一步的快速參考指南，多語種的說明文字，并自動校準傳送帶寬度和產品的高度完全匹配的金屬探測器，與眾多的光圈大小配置的優化性能。可用。額外的配件，如MODBUS通訊模塊，場壓縮法蘭遠程控制安裝套件，報警/故障警告燈和喇叭，產品檢測觸發的照片眼睛輕松地定制你的金屬探測器。注：為了確保正確的光圈間隙，至少應添加1.9英寸（50毫米），該產品的寬度和高度。除非下令遠程安裝控制面板總是安裝金屬探測器的情況下正面中心包含的內容：金屬探測器頭，安裝硬件，水密電器配件，測試卡和CD（用戶指南和安裝文件說明，快速參考指南，以及PC軟件模擬器）

?
