Masterflex B / T泵頭; IEC-72-71-14F130電機B5法蘭

Masterflex B/T pump head; for IEC 72-71-14F130 motor with B5 flange

將現有電機轉換成一個高容量的Masterflex B/T泵

接受B/T PerfectPosition?泵管尺寸B/T 87和B / T 91

兼容標準56C幀或IEC 72-71-14F130電機B5電機法蘭

泵頭要求最小1/2-hp電機最大轉速1800

集成安全聯鎖當頭打開泵關閉

享受蠕動管泵使用您現有的電機的優勢。溫和的泵送動作適合粘度或剪切敏感的流體，包括活細胞和細胞產品，泥漿和懸浮液。易清理，批次之間轉換-簡單地拋掉管，幾秒鐘內就可安裝一個新的。由于管是??唯一的濕潤部分，大大簡化了化學相容性，同時維修方便快捷，

B/T快裝泵頭確?？焖俸腿菀赘鼡Q泵管，并具有一個閉塞的機制，出了滑動管閉塞床容易，可重復管裝。環氧粉末涂料防止化學腐蝕，改善清潔。易開門CIP或SIP協議。PerfectPosition ?泵管具有管保留標記，表明管的確切長度以及最好的管材性能和壽命。

堅固結構材料包括不銹鋼/粉涂碳鋼/鋁鑄泵頭，Nylatron?輥堅固可靠。外殼防護等級IP56防塵，防水。包括電機安裝硬件。

包括：電機安裝硬件和3英尺（1米）的Tygon ? LFL B/T 91管06430-91。

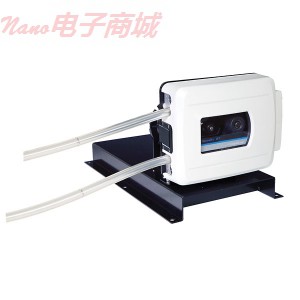

Convert your existing motor into a high-capacity Masterflex B/T pump

Accept B/T PerfectPosition? pump tubing sizes B/T 87 and B/T 91

Compatible with standard 56C frame or IEC 72-71-14F130 motors with B5 motor flange

Pump heads require a minimum 1?2-hp motor with a maximum of 1800 rpm

Integrated safety interlock shuts the pump down when the head is opened

Enjoy all of the advantages of peristaltic tubing pumps using your existing motor. Gentle pumping action is ideal for viscous or shear-sensitive fluids, including live cells and cell products, slurries, and suspensions. Easy clean-up and change-over between batches - simply throw the tubing away and install a new piece in seconds. Because the tubing is the only wetted part, chemical compatibility is greatly simplified, while maintenance is quick and easy.

B/T Rapid-Load pump heads ensure fast and easy tubing changes and feature an occlusion mechanism that slides the tubing occlusion bed out of the way for easy and repeatable tube loading. An epoxy-powder coating prevents chemical corrosion and improves cleanup. The easy-opening door swings away to allow for CIP or SIP protocols. PerfectPosition? pump tubing features tubing retention marks that indicate the exact length of tubing needed to give the best tubing performance and life.

Sturdy materials of construction include stainless steel/powder coated carbon steel/cast-aluminum pump head, and Nylatron? rollers for rugged dependability. IP56-rated housing protects against dust and water. Motor mounting hardware is included.

What's Included:

motor mounting hardware and 3 ft (1 m) of Tygon? LFL B/T 91 tubing 06430-91.
