Masterflex 電腦兼容/可編程數字驅動，0.02到100轉，115 / 230 VAC

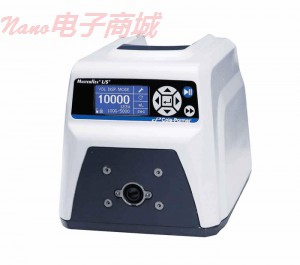

L/S computer-compatible/programmable digital drive, 0.02 to 100 rpm, 115/230 VAC

這個數字驅動接口到PC的自動化實驗室和過程應用 - 作為一個獨立的分配泵或使用

精密數字驅動器提供高精度免維護電機和一個全新的圖形界面，使得比以往任何時候都更容易設置和操作

流速為0.001?3400毫升/分鐘與L / S油管。流量取決于驅動器轉速和泵管尺寸。

圖形液晶顯示四種工作模式，連續運行，定時分配，復制分配量分配。泵的性能不斷。

菜單驅動的界面，可以選擇七種語言，編程及操作

免除毫升每毫升容積分配，0.001?9999毫升;復制1至9,999點膠周期;或SEC時間之間的時間間隔，每次分配周期（1秒到99小時59分59秒）

無刷免維護電機提供±0.1％的速度控制精度1量程比6000

接口與PC機通過RS-232或USB連接

通過遙控DB25母接頭驅動器：
-速度控制輸入0至20 mA，4至20 mA或0?10 V;
-抽水方向需要集電極開路或觸點閉合;的
--Start/stop/purge需要開放收藏家或觸點閉合;
-轉速計輸出0至20毫安，4至20 mA，0?10 V，集電極開路

這些精密驅動器提供模擬遠程控制選項和簡單的編程自動化過程應用的理想選擇。驅動器具有可編程分配間隔，可以讓你設置方便，自動配藥分配循環之間的延遲。程序校準，確保分配和顯示精度驅動器存儲校準值每油管尺寸
驅動程序通過簡單的鍵盤膜，鍵盤鎖定/解鎖功能保護設置。汽車是可逆的，所以您可以清除之前或之后，在任一方向的泵和泵液管包含的內容： 6英尺（1.8米）電源線與IEC 320/CEE22的插座。插頭/電源線驅動器隨附在訂貨時指定目的地國家。

Interface this digital drive to a PC for automated lab and process applications--or use as a stand-alone dispensing pump

Precision digital drive offers a maintenance-free high-accuracy motor and an all-new graphical interface that makes setup and operation easier than ever

Flow rate 0.001 to 3400 mL/min with L/S tubing. Flow rate depends on drive rpm and tubing size.

Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.

Menu-driven interface lets you select one of seven languages for programming and operation

Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 sec to 99 hr, 59 min, 59 sec)

Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio

Interface with a PC via RS-232 or USB connection

Remote control via DB25 female connector on drive:

--Speed control input 0 to 20 mA, 4 to 20 mA, or 0 to 10 V;
--Pumping direction requires open collector or contact closure;
--Start/stop/purge requires open collector or contact closure;
--Tachometer output 0 to 20 mA, 4 to 20 mA, or 0 to 10 V, open collector

These precision drives offer analog remote control options and simple programming—ideal for automated process applications. Drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size.
Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings. Motor is reversible so you can purge tubing before or after pumping and pump fluid in either direction.
What's Included:
6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country specific plug/cord set; please specify ultimate destination when ordering.
