Masterflex L / S 8通道多道泵頭為L / S管

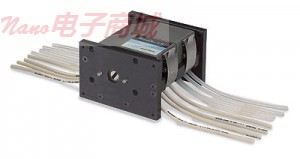

L/S 8-channel multichannel pump head for L/S tubing

多管道無管卡同步低脈動流量

機械加工不銹鋼（SS）和陽極化鋁，不銹鋼轉子，軸承，可靠，連續工作負荷和輥

六輥頭提供低脈動流，三輥頭提供更高的流速

堆疊頭擴大流動管道

兼容L/S?驅動器接受兩個或兩個以上的泵頭; 1/10馬力以上。

裝入管子，鎖存的閉塞床和運行泵兩站管，為您提供最佳張力無需調整

流量范圍：0.045-280毫升/分鐘，每管道取決于驅動器轉速和泵管尺寸

L/S?精密泵管頭接受兩站管套，大小L/S?13，L/S?14，L/S? 16

四，或八通道頭是可堆疊多達24通道（取決于管道尺寸和配方）

注：多通道泵頭需要兩站管套，點擊相關產品鏈接右側訂購詳情。

Low-pulsation synchronous flow from multiple channels with no cartridges

Machined stainless steel (SS) and anodized aluminum with SS rotor, bearings, and rollers for reliable, continuous-duty operation

Six roller heads deliver low-pulsation flow; three-roller heads offer higher flow rates

Stackable heads let you expand the number of flow channels

Compatible with L/S?drives that accept two or more pump heads; 1/10 hp min.

Load the tubing, latch the occlusion bed, and run the pump—two-stop tubing gives you optimum tension with no adjustment

Flow range: 0.045 to 280 mL/min per channel depending on drive rpm and tubing size

Heads for L/S? precision pump tubing accept two-stop tubing sets, sizes L/S? 13, L/S? 14, and L/S?16

Four-, or eight-channel heads are stackable for up to 24 channels (depending on tubing size and formulation)

Note: multichannel pump heads require two-stop tubing sets—click on the Related Products link at right for ordering details.
