Masterflex L / S高性能泵ATEX區域2頭; SS轉子

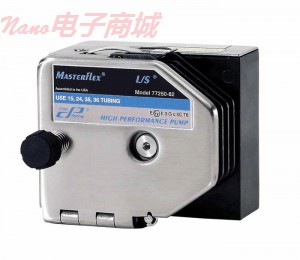

Masterflex L/S High-Performance pump head for ATEX Zone 2; SS rotor

ATEX Zone 2 認證

L/S?是最新一代高流率，高壓力泵頭

吸水高度更好，粘性流體輸送，泵管壽命長，壓力高達150磅，使用L / S高壓泵管。

泵頭設計允許油管插進/出，同側泵頭安裝適合您的空間和應用需求。

軋輥，軸承，轉子板，轉子軸是由不銹鋼（SS）制成的;阻斷架是聚苯硫醚（PPS）。SS和PPS具有優異的耐化學性; SS還具有高耐用性和使用壽命長等特點。

兼容所有的L / S驅動器接受兩個或兩個以上的泵頭。咨詢驅動器的規格，L / S高性能泵頭不堆疊。

接受高性能精密管材尺寸L/S? 15，L/S? 24，L/S? 35，L/S? 36

還接受L / S高壓油管尺寸L/S? 14HP，L/S? 16HP，L/S? 15HP， L/S? 16HP

包括：

安裝硬件和15”（38厘米）長的L/S?  35聚乙烯?E-LFL泵管。

Approved to ATEX Zone 2

The highest flow rate and the highest pressure generation of any L/S? pump head

Offers better suction lift, viscous fluid transfer, and long tubing life—pump at pressures up to 150 psi using L/S high-pressure pump tubing.

Pump head design allows tubing to enter and exit the same side of the pump head—mount the pump head to best suit your space and application needs.

Rollers, bearings, rotor plates, and rotor shaft are made of stainless steel (SS); occlusion bed is made from polyphenylene sulfide (PPS). SS and PPS have excellent chemical resistance; SS also offers high durability and long service life.

Compatible with all L/S drives that accept two or more pump heads. Consult drive specifications; the L/S High-Performance pump head is not stackable.

Accepts high-performance precision tubing sizes L/S? 15, L/S? 24, L/S? 35, and L/S? 36

Also accepts L/S high-pressure tubing sizes L/S? 14HP, L/S? 16HP, L/S?  15HP, L/S? 16HP

What's Included:

mounting hardware and a 15" (38-cm) length of L/S? 35 Tygon?  E-LFL pump tubing.
