Masterflex L / S易裝3泵頭高性能精密管材，不銹鋼轉子

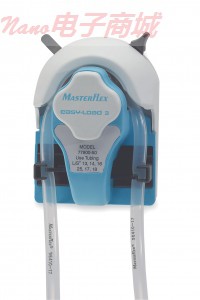

Masterflex L/S Easy-Load 3 pump head for high-performance precision tubing, SS rotor.

無需工具或硬件安裝泵頭

自動油管保留速度設置和轉換

流量范圍：1.7?2900毫升/分鐘，取決于驅動器轉速和泵管尺寸

每個泵頭接受所有的6個精密管精密泵管尺寸L / S? 15，L / S ? 24，L / S ? 35，L / S ? 36。

扭鎖式功能讓你在幾秒鐘內安裝泵頭。

包括安裝板適應在兩個方向上的操作過程中易裝? 3 L / S驅動器鎖定標簽固定泵頭

聚丙烯（PP）與CRS或SS轉子CRS轉子外殼更經濟，而SS提供了更強的耐久性和耐化學性。

同側管入口/出口便于集成到空間受限的應用，安裝和運行泵頭四個位置任何一個。（取決于驅動器泵頭）

累計多達四個頭，增加流量適合多通道應用，見頭安裝最大數量的單個驅動器??的規格。

易裝? 3新設計的特點是自動保留機制，使裝卸管比以往任何時候都更容易。彈簧加載的閉塞桿，打開閉塞床，同時縮回管固定器。關閉杠桿和啟動泵架自動控制安全架住管子。

閉塞床應用最佳閉塞力廣泛閉塞的角度防止液體回流到額定壓力油管。

包括：安裝板/ L / S ?泵驅動器和適配器套件17“硅膠泵管長度。泵頭可安裝驅動。

Mount and stack heads without tools or hardware; automatic tubing retention speeds setup and changeover

Flow range: 1.7 to 2900 mL/min depending on drive rpm and tubing size

Each pump head for precision pump tubing accepts all six precision tubing sizes—L / S? 15，L / S ? 24，L / S ? 35，L / S ? 36。

Twist-lock mounting feature lets you mount and stack heads in seconds.

Included mounting plate adapts Easy-Load? 3 to L/S drives—locking tab secures pump head during operation in either direction

Polypropylene (PP) housing with CRS or SS rotor—CRS rotor is more economical while SS offers greater durability and chemical resistance.

Same side tubing entry/exit permits easy integration into space-limited applications—mount and operate pump head in any of four positions (depending on drive)

Stack up to four heads to increase flow capacity and for multiple-channel applications; see individual drive specifications for maximum number of heads to be mounted.

The all-new design of the Easy-Load? 3 features an automatic retention mechanism that makes loading and unloading tubing easier than ever. The spring-loaded occlusion lever opens the occlusion bed and simultaneously retracts the tubing retainers so that tubing slips right in. Close the lever and start the pump—the retainers automatically grip and hold the tubing securely in place.

The occlusion bed applies optimal occlusion force and the wide occlusion angle prevents fluid backflow up to the rated pressure of the tubing.

What’s included: mounting plate/adapter kit for L/S?pump drives and a 17” length of silicone pump tubing. Pump head comes ready to mount to drive.
