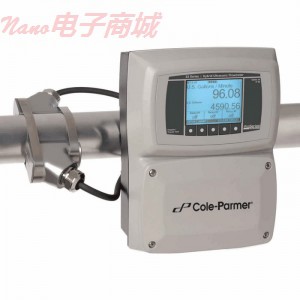

Cole-Parmer S3C1A1010SDJGMALE 混合超聲多普勒/過境時間流量計

無創技術適用于清潔或臟的液體

RS-232，RS-485，以太網和USB連接到實時用戶的PC軟件

不要移動零件防止磨損或需要維護

NEMA 4X（IP66）外殼耐磨損適合戶外使用，包括手提箱。

這些超聲波流量計可以測量流體的流量，使用多普勒或傳輸時間法，幾乎與任何可產生聲波的流體都適合使用。流量計使用最先進生產的DSP（數字信號處理），互相關信號分析，以及專有優度測量算法，以確保測量準確可靠。現場輕松調整出廠設置以適應應用的變化，如管道尺寸，管道材料，或流體類型。

鉗式傳感器防護等級為NEMA 4X（IP66），包括10英尺的電線。每個流量計配有PVC管。的大小cooresponding傳感器。附加傳感器管道尺寸和電纜長度可供如下。

包括：手提箱，軟件和可移動32 MB SD卡。

Noninvasive technology works with both clean or dirty fluids

RS-232, RS-485, Ethernet, and USB connections to real-time user PC software

No moving parts to wear or requiring maintenance

NEMA 4X (IP66) enclosure is weather-resistant for outdoor use, and includes carrying case.

These ultrasonic flowmeters can measure fluid flow using either the Doppler or transit time methods, making the meter suitable for use with nearly any fluid that can conduct sound waves. The meters use the latest advancements in DSP (digital signal processing), cross-correlation signal analysis, and a proprietary goodness-of-measurement algorithm to ensure accurate and reliable measurements. Easily adjust factory settings in the field to accommodate any chages in applications, such as pipe size, pipe material, or type of fluid.

The clamp-on transducers are rated NEMA 4X (IP66) and include 10 ft. of cable. Each flowmeter comes with the cooresponding size transducer for PVC pipe. Additional transducer pipe sizes and cable lenghts are available below. These additional transduce

What's Included:

Carrying case, software, and removeable 32 MB SD card.
