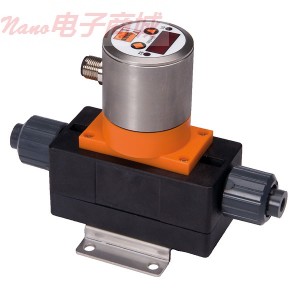

德國Kobold2“（F）PP配件; 6.5至130 GPM; 4至20 mA和一個PNP開關輸出的磁感應流量計

可以應用于各種導電性的液體，酸，焦散等流體的流量測量。

應用磁感應技術，沒有移動部件

不銹鋼焊條焊接的Ryton ? PPS機身。

PVC或PP配件

MIK Kobald系列磁感應流量計是測量導電液體的流量的理想選擇，是應對可靠性和低電磁流量計壓力損失需要的完美解決方案。

這些流量計測量流量使用磁感應原理。根據法拉第電磁感應定律，產生感應電流的導體，因為它的動作通過磁場。產生的電流與導體運動速度成正比。作為導體的導電性液體，通過儀表表體上安裝的一組電磁線圈產生磁場。安裝在表體中的電極處收集電流，其電流大小與流量成正比。

這些固態(tài)元件沒有移動部件磨損問題，使他們非?？煽?。對于粘性和骯臟的液體測量沒有防治精度退化。內部采用的是的濕物料聚苯硫醚PPS 316L不銹鋼焊條。選擇從儀表輸出4至20 mA電流或通過一個PNP開關顯示。附件34900-90是一個4針，6英尺微型DC連接器電纜為4至20 mA輸出模式。附件34900-92是一個6英尺5針，通過微型DC連接器電纜與顯示和輸出相連的機型。

Magneto-inductive Flowmeter With 3/8" PVC Fittings; 0.20 To 4 GPM; 4 To 20 mA Output

For use with a wide variety of conductive liquids, acids, and caustics

Magneto-inductive technology with no moving parts

Ryton? PPS body with stainless steel electrodes

PVC or PP fittings

The Kobald MIK-series magneto-inductive flowmeter is the perfect solution for measuring the flow of conductive liquids in applications where the reliability and low pressure loss of a magmeter is desired.

These meters measure flow using the magneto-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor. A conductive liquid passing through the meter and the body acts as the conductor. The meter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the meter body collect the current whose magnitude is proportional to flowrate.

These solid-state meters have no moving parts to wear out, making them very reliable. Viscous and dirty liquids are measured with no accuracy degredation. The wetted materials for the flow body are Ryton PPS with 316L stainless steel electrodes. Choose from meters with 4 to 20 mA output or with a display and 4 to 20 mA output with one PNP switch. Accessory 34900-90 is a 4-pin, 6-ft micro-DC connector cable for the 4 to 20 mA output models. Accessory 34900-92 is a 5-pin, 6-ft micro-DC connector cable for models with display and output.

Other configurations such as body material, fitting type, electronics, and totalizer are available. Contact a Davis Application Specialist for details.



產品規(guī)格
產品類型	電磁流量計
描述	電磁流量傳感器
準確性	滿量程的±2.0％
材料（配件）	PVC
最高工作溫度（oF）	176
最高工作溫度（°C）	80
最大壓力	145磅
符合CE認證	是
工作溫度	32到176°F（0至80℃）
電氣連接	6英尺5針，微型DC連接器
品牌	Kobold
型號	MIK 5NAUGR C34P
功率	24 VDC
制造商編號	MIK 5NAUGR C34P

Specifications
Product Type	Magnetic Flowmeters
Description	Magnetic Flow Sensor
Accuracy	±2.0% of full scale
Material (fitting)	PVC
Max operating temperature (o F)	176
Max operating temperature (o C)	80
Max pressure	145 psi
CE Compliance	Yes
Operating temperature	32 to 176°F (0 to 80°C)
Electrical connections	5-pin, 6-ft micro-DC connector
Brand	Kobold
Model	MIK-5NAUGR C34P
Power	24 VDC
Manufacturer number	MIK-5NAUGR C34P
