小體積的生物反應器，最大限度地降低成本，節約工作臺空間

模擬實驗室規模生物反應器，小范圍內配置微生物或細胞培養

簡單安裝，設置即用“開箱即用”

培養占用工作臺空間小，介質少

更短的時間內產生更多的數據

標準顏色是灰色的：選配額外的顏色或電壓與我們聯系

MiniBio范圍內的生物反應器是一個真正的規模變小了的傳統的實驗室生物反應器，這意味著你能夠在不犧牲質量為代價的前提下，以實現高通量生物反應器培養。所有建筑材料被證明是無毒，化學惰性。MiniBio是自定義性價比較高的解決方案，以適應任何實驗室的需求。MiniBio的是完全可擴展到更大的實驗室反應堆。MiniBio系統提供工作體積小50毫升全面檢測，并完全控制容器。機械耦合攪拌器即可混合粘性介質或高密度培養2000 rpm。封頭包括pH值端口，溶解氧傳感器，隔墊，泡沫和液位傳感器，疊加，恒化器，溫度傳感器，溫度計套管，分布器曝氣（L-噴淋或多孔噴淋），多個液體入口，樣品管和排氣冷凝器，輕松處理你的數據，我的控制控制器通過直觀的。我的控制有六個控制回路（pH值，溫度，溶解氧，泡沫，水平和轉）。單個接口可以控制多達32個并行我的控制器。用戶可以配置為微生物和細胞培養中的應用?？刂茀?shù)包括批處理，補料，灌注，連續種植。PID控制自動調整和適應的實驗參數，即使在工藝條件的變化。通過您的Web瀏覽器的iPod ?，iPhone ?或iPad ?，Android ?的，或Windows ?系統選擇操作。用戶自由連接任何傳感器輸入的任何驅動器，并創建一個新的控制回路。該軟件運行，所以如果失去與PC連接，這個過程是不中斷的每個控制器內。每個MiniBio束的BioXpert精簡版軟件，數據采集，兼容的Windows 7，Vista中或XP操作系統。

包含：生物反應器容器和集成攪拌器，我的控制控制器，精簡版BioXpert軟件，探頭和電纜，磁頭板，啟動套件，（管泵和氣體流線，管夾，更換隔隔夾，各種O型圈，100樣品管），兩個氣體過濾器（風口和噴淋組裝的），并有5英尺（1.5米）電源線，插上我的控制控制器

Small-volume bioreactors minimize costs and use less of valuable bench space

Mimic lab-scale bioreactors on a small scale—configure to microbial or cell culture

Simple installation and setup—ready to use "out-of-the-box"

Cultivate using less bench space and less medium

Generate more data in less time

Standard color is grey: contact us for additional color options or voltages

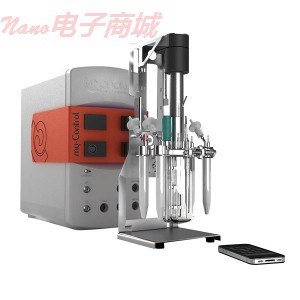

The MiniBio range of bioreactors is a true scale-down of the traditional laboratory bioreactor, which means you are able to achieve high-throughput bioreactor cultivation without sacrificing the quality of your experiment. All materials of construction are proven to be nontoxic and chemically inert. The MiniBio is a cost-effective solution that can be customized to fit the demands of any lab. A minimal footprint is required for all system components, yet the MiniBio's are also fully scalable to larger laboratory reactors. The MiniBio systems provide for working volumes as small as 50 mL fully instrumented, and fully controlled vessel. The mechanically coupled agitator allows mixing up to 2000 rpm in even viscous media or high-density cultures.

The head plate includes ports for pH, DO sensors, a septum, foam and level sensor, overlay, chemostat, thermowell for temperature sensor, sparger aeration (L-sparger or porous sparger), multiple liquid inlets, sample pipe and exhaust condenser.

Easily handle your data through the intuitive my-Control controller. The my-Control has six control loops (pH, temperature, dissolved oxygen, foam, level, and rpm). A single interface can control up to 32 parallelmy-Controllers. User can configure for both microbial and cell culture applications. Control parameters include batch, fed-batch, perfusion, and continuous cultivation. The PID control will auto tune and adapt to your experiment parameters even when the process conditions change. Choose to operate through your web browser, iPod?, iPhone?, or iPad?, Android?, or Windows? system. The user has configurational freedom—connect any actuator to any sensor input and create a new control loop. The software runs within each controller so if you lose connection with the PC, the process is not interrupted.

Each MiniBio bundle comes with the BioXpert Lite software for data acquisition, which is compatible with Windows 7, Vista or XP operating systems.

What's Included:

bioreactor vessel and integrated stirrer, my-Control controller, BioXpert Lite software, probes and cables, headplate, start-up kit, (tubing for pumps and gas flow lines, tubing clamps, replacement septa for septum holder, various O-rings, 100 sample tubes), two gas filters (for air outlet and sparger assembly), and a 5-ft (1.5-m) power cord with plug for my-Control controller
