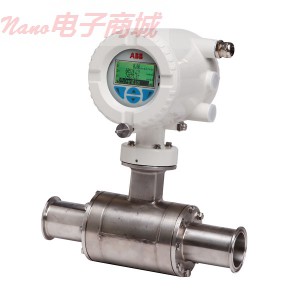

ABB HygenicMaster ?電磁流量計，3/4“ - 0.79至39.6 GPM

由FDA批準的制造材料，并按照EHEDG和3A認證

精度為±0.2%的測量值

直觀的導航和配置

專為食品和飲料，制藥和生物技術行業的設計

HygienicMaster?擁有增強的PFA內襯提高真空穩定性，并防止?jié)撛诘膬?nèi)膽變形。該傳感器是完全CIP / SIP，所述HygienicMaster制造由FDA批準的材料和按照EHEDG和3A的認證，在潮濕或地區大的溫度波動環境中使用傳統的直讀式頻率計，當水分進入會導致漂移和測量不準確甚至產品失敗，這些電磁流量計耐用和堅固的設計是非常適合于這些條件，因?yàn)樗梢詫⒁粋€(gè)GORE-TEX膜傳感器和變送器，完全封裝的電子減少水分侵入，提高整體產品的可靠性。

HygienicMaster還具有高精確度和先進的信號處理，以確保最低擁有成本。這些電磁流量計給用戶提供了很大的靈活性，該電極嵌入到襯墊，從而確保表面光滑無缺口或裂縫。

采用先進的過濾技術，這些電磁流量計的信號從噪聲中分離，產生更好的流動感測的可靠性提高精度。用戶友好的界面允許所有工藝參數的快速和簡單的數據錄入?！耙装惭b”引導通過菜單來盡可能快地設置參數，操作員一步一步來。軟鍵的功能使得配置簡單，只要用手機

標準HART協議使在線修改和監控參數，背光，圖形顯示可以很容易地通過270°旋轉，而不需要任何工具?！巴高^玻璃”控制允許本地操作界面輸入周期短，見效快的數據所有用戶的具體參數。

先進的數據存儲在傳感器內部省去了匹配傳感器和變送器，板載傳感器內存刪除與可插拔數據存儲器模塊相關的潛在問題。初始安裝中，自配置順序自動復制所有數據到發射機，省去了錯誤和導致起動速度增加。數據的傳感器和變送器存儲器冗余存儲期間所有操作被持續更新，以確保測量的總的完整性。容易獲得布線也最大限度地減少了時間，解決問題的領域。

這些電磁流量計監測其自身的可操作性和過程，按照NAMUR NE107，報警和警告進行分類的狀態分類，如“需要維修”，“功能檢查”，“失敗”和“在規范之外”。

HygenicMaster? Magnetic Flowmeter, 3/4" - 0.79 to 39.6 GPM

Manufactured from FDA approved materials and certified in accordance with EHEDG and 3A

Accuracy to ±0.2% of measured value

Intuitive navigation and configuration

Designed specifically for the food and beverage, pharmaceutical, and biotechnology industries

HygienicMaster^? features a reinforced PFA liner improves vacuum stability and prevents potential liner deformation. The sensor is fully CIP/SIP cleanable. The HygienicMaster is manufactured from FDA approved materials and certified in accordance with EHEDG and 3A. While moisture ingress can cause drift and measurement inaccuracy or even product failure when using conventional magmeters in humid environments or areas with large temperature fluctuations, these magmeters’ robust and rugged design is well-suited for these conditions as it can incorporate a Gore-Tex? membrane in both the sensor and transmitter. The fully encapsulated electronics reduce moisture ingress and enhance overall product reliability.

HygienicMaster also features high accuracy and advanced signal processing to ensure lowest cost of ownership. These magmeters provides a great deal of flexibility to the users. The electrodes are embedded into the liner, ensuring a smooth surface without gaps or crevices.

Using advanced filtering technology, these magmeters improve accuracy by separating the signal from the noise, resulting in better flow sensing reliability. The user-friendly interface allows quick and simple data entry for all process parameters. The “easy setup" guides the operator step by step through the menu to set parameters as fast as possible. Softkey functionality makes configuration as simple as using a mobile phone

Standard HART protocol enables online modification and monitoring of parameters. The backlit, graphical display can be easily rotated through 270° without the need for any tools. “Through-the-glass” control allows local operator interface to input short, quick data for all user specific parameters.

Advanced data storage inside the sensor eliminates the need to match sensor and transmitter in the field. The on-board sensor memory removes the potential problems associated with pluggable data memory modules. On initial installation, the self-configuration sequence automatically replicates all data into the transmitter, eliminating the opportunity for errors and leading to increased speed of start-up. Redundant storage of data in both the sensor and the transmitter memory is continually updated during all operations to ensure total integrity of the measurement. Easy access to wiring also minimizes the time for problem solving in the field.

These magmeters monitor its own operability and your process. In accordance with NAMUR NE107, alarms and warnings are classified with the status classifications such as ‘maintenance required,’ ‘function check,’ ‘failure’ and ‘outside of specification’.
