德國Kobold MIK 5NAUER C34P磁感應流量計1 1/4“PP配件; 4到80 GPM; 4至20 mA和一個PNP開關輸出

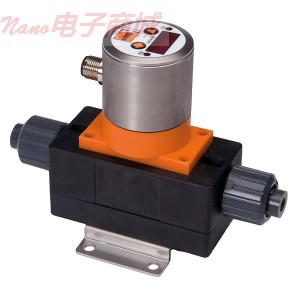

Magneto-inductive Flowmeter With 1 1/4" PP Fittings; 4 To 80 GPM; 4 To 20 mA And One Pnp Switch Output

For use with a wide variety of conductive liquids, acids, and caustics

Magneto-inductive technology with no moving parts

Ryton^? PPS body with stainless steel electrodes

PVC or PP fittings

The Kobald MIK-series magneto-inductive flowmeter is the perfect solution for measuring the flow of conductive liquids in applications where the reliability and low pressure loss of a magmeter is desired.

These meters measure flow using the magneto-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor. A conductive liquid passing through the meter and the body acts as the conductor. The meter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the meter body collect the current whose magnitude is proportional to flowrate.

These solid-state meters have no moving parts to wear out, making them very reliable. Viscous and dirty liquids are measured with no accuracy degredation. The wetted materials for the flow body are Ryton PPS with 316L stainless steel electrodes. Choose from meters with 4 to 20 mA output or with a display and 4 to 20 mA output with one PNP switch. Accessory 34900-90 is a 4-pin, 6-ft micro-DC connector cable for the 4 to 20 mA output models. Accessory 34900-92 is a 5-pin, 6-ft micro-DC connector cable for models with display and output.

Other configurations such as body material, fitting type, electronics, and totalizer are available. Contact a Davis Application Specialist for details.

對于使用導電性的液體，酸，焦散各種各樣的

磁感應技術，沒有移動部件

的Ryton ^? PPS體不銹鋼焊條

PVC或PP管件

MIK Kobald系列磁感應流量計是測量導電液體的流量在應用中的可靠性和低電磁流量計壓力損失需要的完美解決方案。

這些流量計測量流量使用磁感應原理。根據法拉第電磁感應定律，產生感應電流的導體，因?yàn)樗膭?dòng)作通過磁場。感生電流的量成正比的速度運動的導體。作為導體的導電性液體，通過儀表和身體。在表體中包含的一組電磁線圈產生磁場。安裝在表體中的電極收集，其大小是與流量成正比的電流。

這些固態米沒有移動部件磨損，使他們非?？煽?。粘性和骯臟的液體測量沒有防治精度退化。流體內的濕物料聚苯硫醚PPS 316L不銹鋼焊條。選擇從米4至20 mA輸出或一個PNP開關顯示，4至20 mA輸出。附件34900-90是一個4針，6英尺微型DC連接器電纜為4至20 mA輸出模式。附件34900-92是一個6英尺5針，微型DC連接器電纜與顯示和輸出的機型。

其他配置，如體材料，裝配型，電子和累加器。聯系戴維斯應用專家的詳細信息。
