美國Gilmont GF-7360屏蔽流量計/閥門

巧妙的設計使得該儀表在實驗室中得到了廣泛的應用

?

模塊化的組件使得流量儀的測量范圍非常靈活

?

各種多個終端連接，以適應工藝要求

?

非屏蔽流量計在低壓條件下應用良好。這種傳感器端直接連接到對應內徑的流量管的底部。玻璃錐關節是一種包含浮點的備用連接選項（聯系我們咨詢玻璃錐關節相關問題）屏蔽流量計更適

?

合高壓力環境下的應用而且安裝時需要面板安裝流量計的輔助。末端襯套雙連接能力配備有兩種連接方式管道或螺紋;下面列出管道與螺紋相互之間的匹配情況。屏蔽流量計通過一個20匝微米

?

閥進行流量監測與精確控制。閥門可調節最大流量（半對數）從0.1到100％，并從0.3到60％提供recise最大流量調節。  關聯的流量計的精度能達到±2％或±1刻度，以較高者為準。微米級

?

管流量計（型號03210-00 03210-20 03234-50）精確度能達到±5％或±2％的規模，以較高者為準。計算機校準流程圖包括了在STP情況下適用于空氣的漂浮狀況的分析?！癛因子”圖表和公

?

式，可以把現有的量程讀數轉化為其它液體或氣體的量程讀數。也可以通過我們的流量分析軟件訂購產生流程圖，以針對您的特殊需求。 屏蔽模型接受3/8“ID管（規格4和5接受5/8”ID管）

?

。下面不包括用于非屏蔽模型的的PTFE耦合適配器若需要可單獨訂購。玻璃錐度關節是可根據請求聯系我們的技術專員。注：關于每個流量計的具體壓降，請致電我們的技術人員

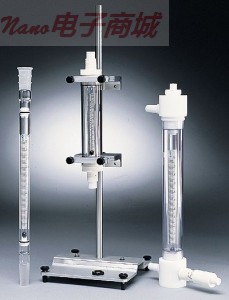

Gilmont Unshielded Flowmeter Sz. 0 Tube

?

Design makes each meter suitable for a broad range of laboratory applications

?

Modular components allow for meter flexibility across a wide range of flow rates

?

Multiple end connections to suit process requirements

?

Unshielded Flowmeters work well in low-pressure applications. Connect the flowtube end directly to tubing having the proper inner diameter—flowtube outer diameters

?

are listed below. Glass taper joints are an alternate connection option which slip on the PTFE stops that contain the float (contact our Applications Specialists to

?

order the glass taper joints).

Shielded Flowmeters are better suited to higher-pressure applications or for installations requiring a panel-mounted flowmeter. End bushings are molded with dual

?

connection capability—tubing or threaded; listed below are the appropriate tubing and threaded connections provided with each meter.

Shielded Flowmeters with Valves offer flow monitoring along with precise control through an integrated 20-turn micrometer valve. The valve can be adjusted from 0.1 to

?

100% of maximum flow (semilogarithmic) and provides recise regulation from 0.3 to 60% of maximum flow.Correlated Flowmeters

Extremely accurate—±2% of reading or ±1 scale division, whichever is greater. Flowmeters with micro-sized tubes (models 03210-00, 03210-20, and 03234-50) are

?

accurate to ±5% of reading or ±2% of scale whichever is greater. Computer calibrated flow charts are included for floats used with both air and water at STP. An “R

?

factor” chart and formulas are included to convert scale readings for other gases or liquids or for floats other than glass. Order our flow analysis software below to

?

generate flow charts specific to your individual applications.

Shielded models accept 3/8" ID tubing (sizes 4 and 5 accept 5/8" ID tubing). PTFE coupling adapters for unshielded models are not included—order separately below.

Glass taper joints are available upon request—call our Application Specialists to order.

?

Note: for pressure drop of each flowmeter, please call our Application Specialists

產品規格
產品類型	屏蔽流量計
描述	可變面積，相關流量計
材料（浮動）	玻璃| 316 SS
最高工作溫度（oF）	150
最高工作溫度（°C）	65
最大壓力	60psi的
過程連接	1/8“NPT（M）
牌	Gilmont
模型	GF-7360
尺寸	6“寬x 11”高x 1-5/16“外徑
制造商數量	GF-7360

Specifications
Product Type	Shielded Flowmeter
Description	Variable Area, Correlated Flowmeter
Material (float)	Glass | 316 SS
Max operating temperature (o F)	150
Max operating temperature (o C)	65
Max pressure	60 psi
Process connection	1/8" NPT(M)
Brand	Gilmont
Model	GF-7360
Dimensions	6" W x 11" H x 1-5/16" OD
Manufacturer number	GF-7360

?
