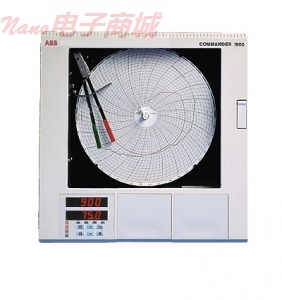

產品規格

產品類型

圖表記錄器/控制器

報警

編號：四個每通道
類型：過程高/低，快/慢的變化率，偏差高/低，輸出高/低
調整滯后，時間延遲

輸入阻抗

> 10兆歐姆（MV和V輸入），100歐姆（mA輸入）

數字輸入

類型：TTL或無電壓
最小脈沖：250毫秒
隔離：500 VDC模塊之間沒有隔離模塊內

記錄筆

數量：4個
響應時間：7秒（滿量程）
分辨率：0.1％步驟
筆升降電機驅動，可選自動降

事件筆

標準：3任何通道上的
實時位置：3位在同一個時間線筆1

串行通信

RS-485，四線MODBUS RTU

邏輯方程

號碼：八個
功能：，
輸入：報警狀態，數字輸入，累加器，邏輯
輸出：繼電器，開關量輸出，圖表停止，報警確認

繼電器輸出

SPDT，額定在115/230 VAC（無感負載5）

符合CE認證

是

尺寸

15（寬）x 15.25高x 6在D（38厘米寬×39厘米高x 14厘米深）

型號

C1914RA001100000STD

生產編號

C1914RA001100000STD

功率

115/230 VAC，50/60赫茲

品牌

ABB Commander

Specifications

Product Type

Chart Recorder/Controllers

Alarm

Number: four per channel
Type: high/low process, fast/slow rate of change, deviation high/low, output high/low
Adjustments: hysteresis, time delay

Input impedance

> 10 M ohm (mV and V inputs), 100 ohm (mA inputs)

Digital input

Type: TTL or volt free
Minimum pulse: 250 ms
Isolation: 500 VDC between modules, no isolation within modules

Recording pens

Number: 4
Response time: 7 seconds (full scale)
Resolution: 0.1% steps
Pen lift: motor-driven, with optional auto-drop

Event pens

Standard: 3-position on any channel
Real time: 3-position on the same time line as pen 1

Serial communication

RS-485, four-wire MODBUS? RTU

Logic equations

Number: eight
Function: OR, AND
Inputs: alarm states, digital inputs, totalizers, logic
Outputs: relays, digital outputs,chart stop, alarm acknowledge

Relay output

SPDT, rated 5 A at 115/230 VAC(noninductive load)

CE Compliance

Yes

Dimensions

15 in W x 15.25 in H x 6 in D (38 cm W x 39 cm H x 14 cm D)

Model

C1914RA001100000STD

Manufacturer number

C1914RA001100000STD

Power

115/230 VAC 50/60 Hz

Brand

ABB Commander
