Psychro-Dyne

濕度和露點測量儀 Humidity & Dew Point Measuring Instruments

濕度測定一目了然。Psychro-Dyne是機動吸式干濕儀允許在3普通“D”手電筒電池的壽命儲存多達1000個讀數。采取干濕法提供高精確度。一個組

合ON / OFF開關控制照明溫度計讀數允許在夜間或黑暗區域的強度。

Humidity determination at a glance. The Psychro-Dyne is a motorized aspirating psychrometer which allows up to 1000 readings on the life of 3 ordinary “D” cell flashlight batteries. The wet and dry bulb method is employed providing high accuracy. A combined ON/OFF switch controls the intensity of the thermometer illumination allowing readings at night or in the dark areas.

這種精密儀器采取堅固的便攜包附有說明書，濕度計算表，2盎司 ，水瓶和其他備件套件包括額外的吸芯和燈?？捎萌A氏度或攝氏度尺度（訂貨）

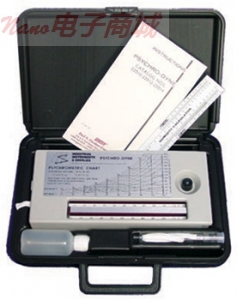

This precision instrument comes in a rugged carrying case with instructions, humidity calculation tables, 2 oz. water bottle and spare parts kit consisting of extra wicking and lamp. Available in either Fahrenheit or Centigrade scales (Specify on order).

技術參數

電機轉速： 8,500 RPM

當前空載： 50毫安。輸入4.5伏直流，永磁

響應時間： 1-1 / 2到2分鐘

更換溫度計： 華氏：0到120°F，1°區劃

攝氏： -15到45°C，1/2°師

三圍： 10“長x 4-1 / 2”寬x 2“高

皮套： 12-1 / 4“（長）x 6-1 / 4”寬x 3-1 / 8“高

重量： 包括手提箱少電池：2-1 /2磅

Technical Data

Motor Speed: 8,500 RPM

Current No Load: 50 milliamperes. Type 4.5 volt direct-current, permanent magnet

Response Time: 1-1/2 to 2 minutes

Replacement Thermometers: Fahrenheit: 0 to 120°F, 1° divisions

Centigrade: -15 to 45°C, 1/2° divisions

Measurements: 10" long x 4-1/2" wide x 2" high

Carrying Case: 12-1/4" long x 6-1/4" wide x 3-1/8" high

Weight: Including carrying case less batteries: 2-1/2 lbs
